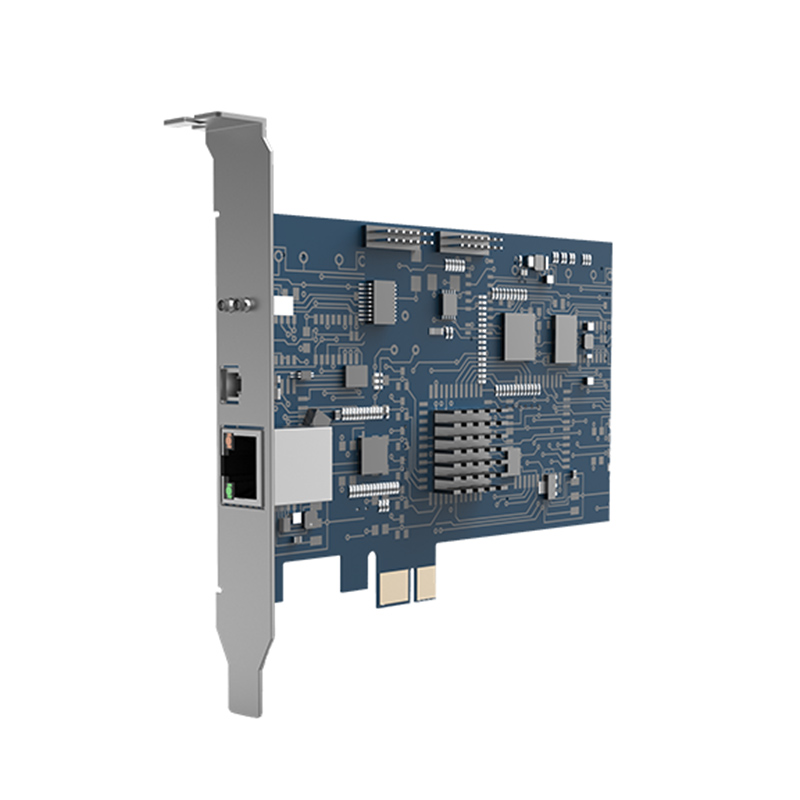

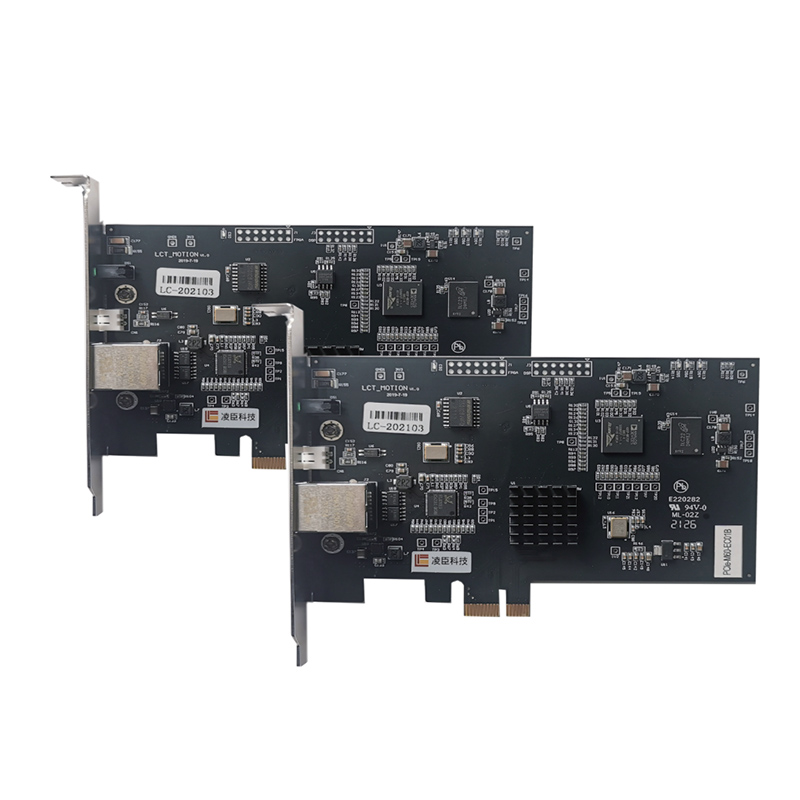

PCIe-EC32 Bus Motion Control Card

The NTROB PCIe-M60 can control up to 32 motion axes, supporting simultaneous control of up to 512 DI (Digital Input) points and 512 DO (Digital Output) points, as well as analog data acquisition and analog output. The bus communication cycle can reach up to 250μs. In terms of motion control, it supports single-axis relative motion, absolute motion, jog motion, and drive-based homing motion, as well as multi-axis interpolation, multi-axis point table motion, and electronic gear motion.

Send Email Inquiry Now

Introduction

PCIe-EC32 32-Axis PCIe EtherCAT Motion Control Card

High-Axis Control Count: Controls up to 32 motion axes.
Massive I/O & Analog Support: Simultaneously supports up to 512 DI points and 512 DO points, alongside analog acquisition and analog output.
Ultra-Low Latency: Bus communication cycle reaches up to 250μs.
Supported Motion Functions:
Single-Axis Motion: Relative motion, absolute motion, jog motion, and drive-based homing.
Advanced Motion: Multi-axis interpolation, multi-axis point table motion, and electronic gear motion.

PCIe-EC32 Technical Specifications
EtherCAT	Baud Rate	100 Mbps, Full Duplex
	Control Mode	CSP / CST / Home
	SDO Mode	CoE (CANopen over EtherCAT)
	EtherCAT Axes	4 / 8 / 12 / 16 / 24 / 32 axes
	Communication Cycle	250μs / 500μs / 1 ms
	Interpolation Cycle	250μs / 500μs / 1 ms
	Distributed Clock (DC)	Supported
	Jitter	≤ 100 ns
	Distance Between Adjacent Stations	≤ 100 m via Cat 6 (or higher) cable
	Software Configuration	NTROB Motion Studio Flexible Configuration
	Automatic Slave Scanning	Supports Auto-Scan Function
	EtherCAT I/O Capacity	512-point Input / 512-point Output

PCIe-EC32 Bus Motion Control Card 32-axis motion control card PCIe EtherCAT master 250μs cycle multi-axis interpolation controller 10000 IO points industrial PCI Express board 第1张
