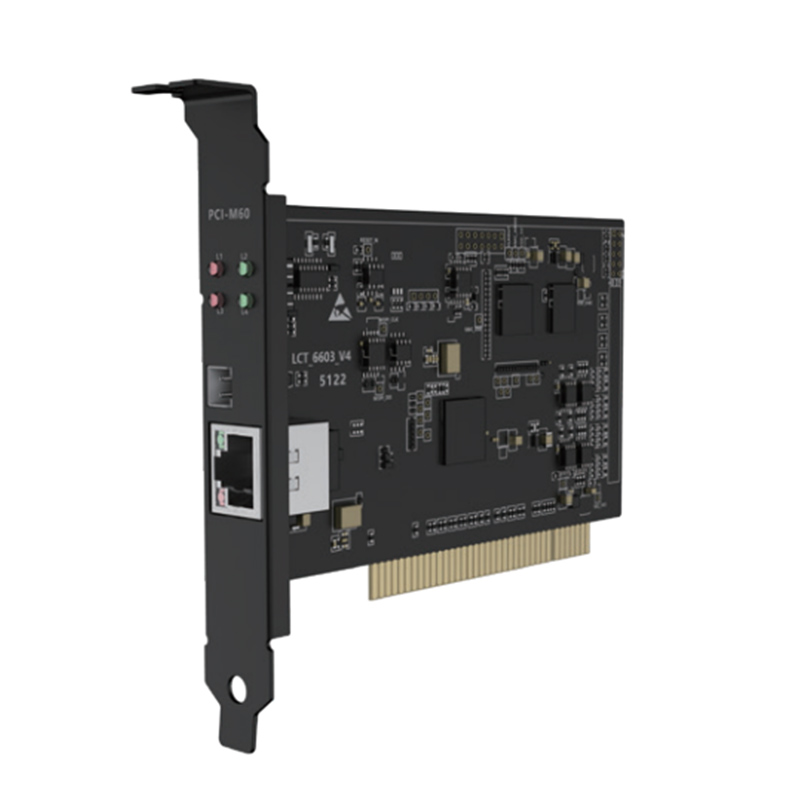

PCI-EC32 32-Axis EtherCAT Motion Control Card

The NTROB PCI-EC32 can control up to 32 motion axes, supporting up to 1024 I/O points, as well as analog data acquisition and analog output. The maximum bus communication cycle reaches up to 250μs. In terms of motion control, it supports single-axis relative motion, absolute motion, jog motion, and drive-based homing motion, alongside multi-axis interpolation, multi-axis point table motion, and electronic gear motion. For advanced applications, it supports up to 4-axis look-ahead velocity trajectory motion.

Send Email Inquiry Now

Introduction

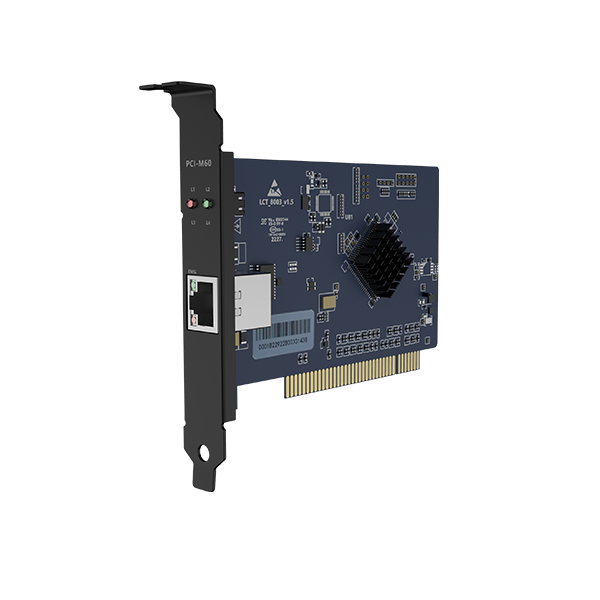

NTROB PCI-EC32 32-Axis EtherCAT Motion Control Card (PCI Bus)

NTROB PCI-EC32 Technical Specifications
Hardware Interface	Bus Type	PCI Bus
Hardware Interface	Drive Compatibility	Compatible with most servo drives on the market
EtherCAT Communication	Motion Control Axes	0 - 32 axes
	Communication Cycle	250 μs / 500 μs / 1000 μs
	Network Cable Specifications	Cat 6 / Cat 7 (Supports connection via Cat 6 or higher network cables)
I/O & Analog Control	EtherCAT I/O Control Capacity	512 DI / 512 DO (Up to 1024 DIO points supported)
I/O & Analog Control	Analog Signals	Supports Analog Input (AI) and Analog Output (AO) data acquisition and output
General Specifications	Operating Temperature	0°C to +60°C
General Specifications	Humidity	5% to 95% RH, non-condensing

PCI-EC32 32-Axis EtherCAT Motion Control Card PCI master card 32 axis motion control bus controller 32-axis for servo drive 第1张
