NTROB PCI-EC1024

The NTROB PCI-EC1024 is a high-performance, FPGA-based EtherCAT I/O master card utilizing a standard PCI interface for reliable industrial automation. Engineered for high-density signal integration, it simultaneously supports the control of up to 512 Digital Input (DI) and 512 Digital Output (DO) points, while seamlessly integrating both analog data acquisition and analog output capabilities. Delivering an ultra-low latency maximum bus communication cycle of 250μs, this card ensures highly stable, real-time deterministic processing and high-speed data throughput for demanding industrial control environments.

Send Email Inquiry Now

Introduction

NTROB PCI-EC1024 FPGA-Based EtherCAT I/O Master Card

NTROB PCI-EC1024 Technical Specifications
EtherCAT	Baud Rate	100 MHz, Full Duplex
	Slot Type	PCI
	SDO Mode	CoE (CANopen over EtherCAT)
	Communication Cycle	250 μs / 500 μs / 1 ms
	Interpolation Cycle	250 μs / 500 μs / 1 ms
	Distributed Clocks (DC)	Supported
	Jitter	≤ 100 ns
	Distance Between Adjacent Stations	≤ 100 m via Cat 6 (or higher) network cable
	Software Configuration	Flexible configuration via dedicated software utilities
	Automatic Slave Scanning	Supported
	EtherCAT I/O Capacity	512 Digital Inputs (DI) / 512 Digital Outputs (DO)

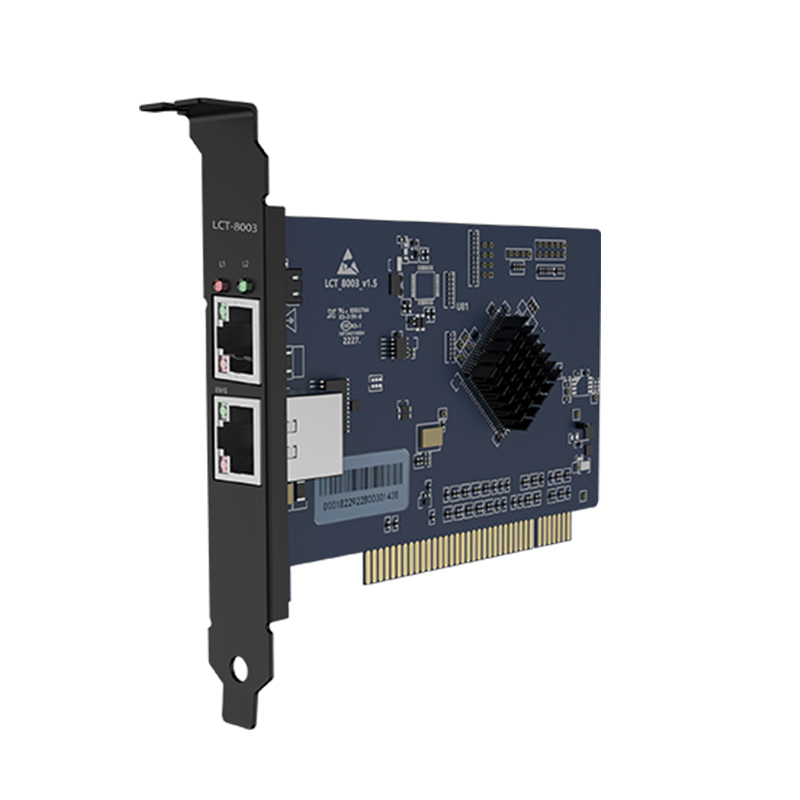

NTROB PCI-EC1024 PCI EtherCAT IO master card 1024 point controller FPGA 512DI 512DO High-density digital 第1张
