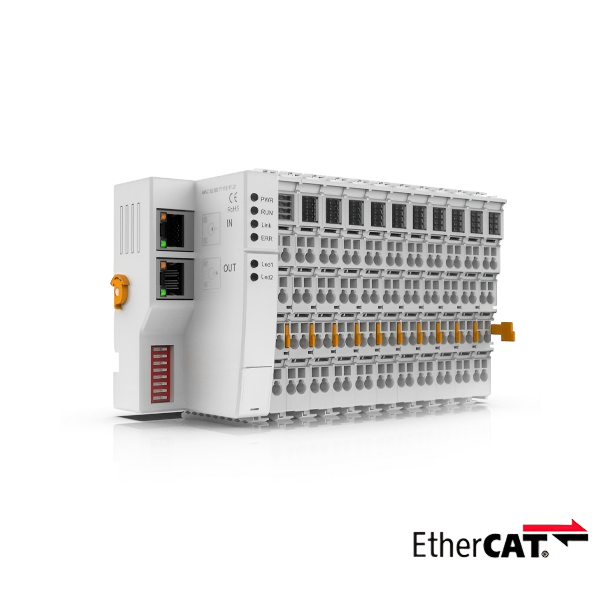

NT-EC1100

The NTROB NT-EC1100 is a high-performance EtherCAT bus coupler designed for modular slice I/O automation systems. Acting as the primary communication gateway, it seamlessly connects EtherCAT fieldbus networks to flexible local I/O expansions. The system supports up to 31 expansion modules—including digital I/O, analog I/O, and specialized functional modules—offering a highly customizable, compact, and cost-effective distributed I/O solution for modern industrial control applications.

Send Email Inquiry Now

Introduction

NTROB NT-EC1100 Technical Specifications
Bus Protocol	EtherCAT (Supports DC, Ring Topology, Freerun)
Station Address Setting	DIP Switch Configuration
Cable Requirement	CAT6 Shielded Ethernet Cable (STP)
Transmission Distance	100 m (Station-to-Station Distance)
Baud Rate	100 Mbps
Max. Data Capacity	1024 Bytes Input / 1024 Bytes Output
Max. Expansion Capacity	Up to 31 Slice I/O Sub-modules
Advanced Features	Supports Address Mapping, Flexible Modular Assembly

EtherCAT Network Topology Example

NT-EC600 Motion Card

PCIe Master Controller

Embedded Box PC

Edge Control System

3rd-Party EtherCAT Master

Beckhoff / Omron / TwinCAT

EtherCAT Fieldbus (100 Mbps)

NT-EC1100 Slice I/O System

Modular Bus Coupler + Max. 31 Sub-modules

[ Digital / Analog / Encoder / PWM ]

Compact Distributed I/O

Stand-Alone / Block Type I/O Modules

[ Direct Field Sensor/Actuator Wiring ]

✓ Standard EtherCAT Protocol | ✓ High-Speed Real-time Bus Topology | ✓ Seamless Third-Party Integration
