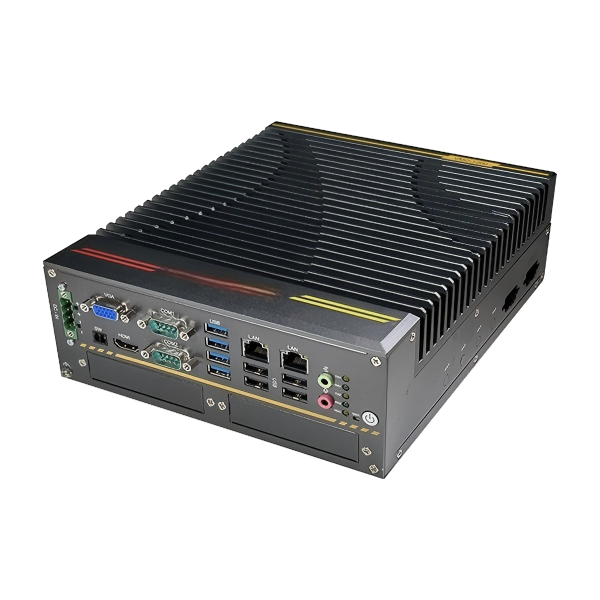

Powered by Intel® 12th/13th/14th Gen Core i3/i5/i7/i9 processors with Q670 chipset, this high-performance industrial PC features 4-slot PCIe/PCI expansion, up to 64GB DDR5, dual LAN, triple display, 10 USBs, M.2 4G/5G, and 19-24V DC input, perfect for complex industrial automation and multi-card vision systems.
| System | |
| Processor | Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® Processors |
| Chipset | Intel® Q670 |
| Memory | 2x DDR5 SO-DIMM 4800/5200/5600MHz, Max up to 64GB |
| Graphics | CPU Integrated Graphics |
| Storage | 1x M.2 M-Key 2242/2280 Slot (PCIe x4/SATA), 2x 2.5" SATA 3.0 HDD/SSD |
| Operating System | Windows 10, Linux |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| External I/O | |
| Ethernet |
1x RJ45 Intel® PCIe LAN 10/100/1000 Mbps (I219-V) 1x RJ45 Intel® PCIe LAN 10/100/1000/2500 Mbps (I225-V) |
| Display |
1x HDMI: Max resolution 4096x2160 @ 60Hz 1x VGA: Max resolution 1920x1200 1x DP++ (Optional) (Triple display supported) |
| Audio | 1x Audio (Line-out & Mic-in) |
| Serial Port | 2x RS232/422/485, Expandable to 4x RS232 (Total 6 COM) |
| USB | 8x USB 3.2 (Gen1) External, 2x USB 2.0 Internal (Total 10 USB) |
| LED & Control |
1x HDD LED, 2x COM1 LED (Rx1/Tx1), 2x COM2 LED (Rx1/Tx1) 1x Power Button, 1x Reset Button, 1x Remote Switch Header (Remote ON-OFF) |
| Power Supply | 1x DC IN 4-pin Phoenix Terminal, 19~24V DC Input (Optional 9~36V wide voltage) |
| Expansion & Internal I/O | |
| PCIe/PCI Expansion | 4-Slot Expansion: 1x PCIe x16 + 1x PCIe x4 + 1x PCIe x1 + 1x PCI |
| Expansion Slots |
1x M.2 E-Key 2230 Slot (PCIe x1/USB 2.0) 1x Mini-PCIe Slot (PCIe x1/USB 2.0/SATA) 1x M.2 B-Key 3042/3052 Slot (USB 3.0/USB 2.0, supports 4G/5G module) |
| Internal Headers |
1x USB 2.0 (Type-A), 1x USB 2.0 Header (1 pin header to 2 ports) 4x RS232 Pin Headers 2x SATA 3.0 Ports (Supports RAID 0/1) 1x TPM 2.0 (Optional) |
| Environment & Mechanical | |
| Operating Temp. |
-10°C ~ 60°C (with 65W CPU & active CPU fan heatsink, 0.7m/s airflow) -10°C ~ 60°C (with 35W CPU & Industrial SSD, 0.7m/s airflow) 0°C ~ 30°C (with HDD, 0.7m/s airflow) |
| Storage Temp. / Humidity | -40°C ~ 85°C | Operating & Storage Humidity: 5%~95%, non-condensing |
| Vibration & Shock |
Random Vibration: SSD: 5~500Hz, 2Grms operating | HDD: 5~500Hz, 1Grms operating Sinusoidal Vibration: 5~500Hz, 2G Non-operating Mechanical Shock: 10G@11ms operating, 30G@11ms non-operating |
| Dimensions & Certification | 230 * 192 * 165.5 mm | Certification: CE / FCC |
